Max. Capacity: 150 l/min Fluid Inlet-Outlet: 1”

Max. Fluid Discharge: 7 bar

Body Material: Aluminum, Cast Iron, Stainless Steel

Air Inlet Size: ½”

Solid Particle Size: 4 mm

Dry Suction Depth: 6 m

Max Air Pressure: 7 bar

Diaphragm Options: Santoprene, Neoprene, Buna-N, EPDM, Tefl on, Viton

Ball Options: Santoprene, Neoprene, Buna-N, EPDM, Tefl on, Viton

Ball Seat Options: Santoprene, Neoprene,

1) Solid particles may pass through the pump.

2) Maintenance cost is low.

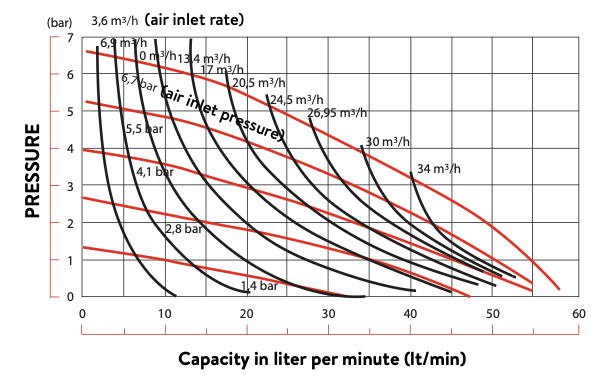

3) Liquid flow rate can also be adjusted when the air inlet pressure of the pump is adjusted.

4) The pump’s air valve and pilot valve repair kits can be repaired without disassembling the pump.

5) It has the feature of working dry.

6) The suction depth of this pump is 6m.

7) It can provide the transfer of two different liquids at the same time without mixing with each other.
