Membrane Nitrogen Generators
-3102f6f3.webp)

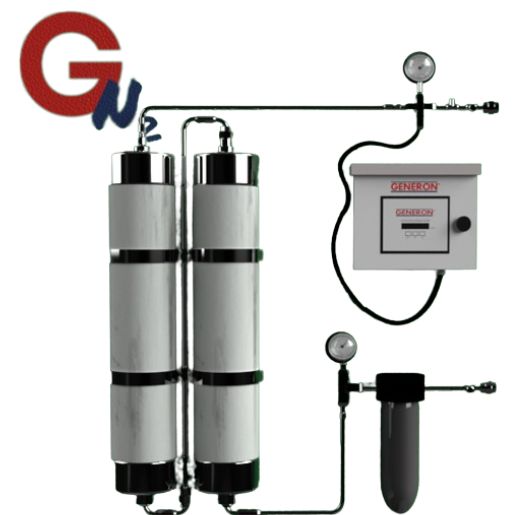

NITROGEN ON WALL (NOW) System
- N₂ Capacity: 15 – 2,000 SCFH @ 100 – 175 psig
- Foot Print: 50” L x 8” W x 50” H

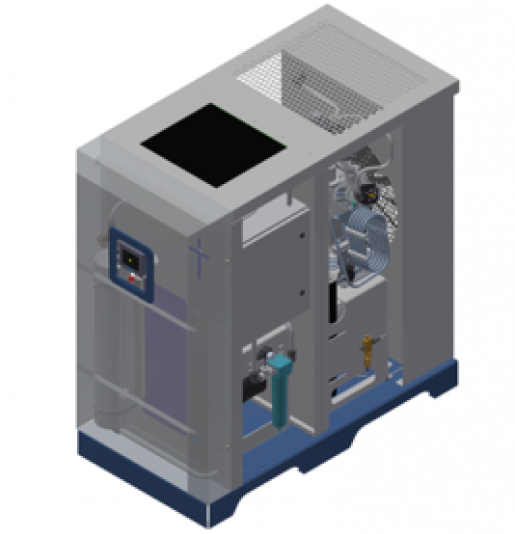

GHPNS – HIGH-PRESSURE SYSTEM
with feed and booster compressor
- N₂ Capacity: up to 1,500 SCFH @ 500 – 5,000 psig
- Foot Print: 72” L x 36” W x 76” H

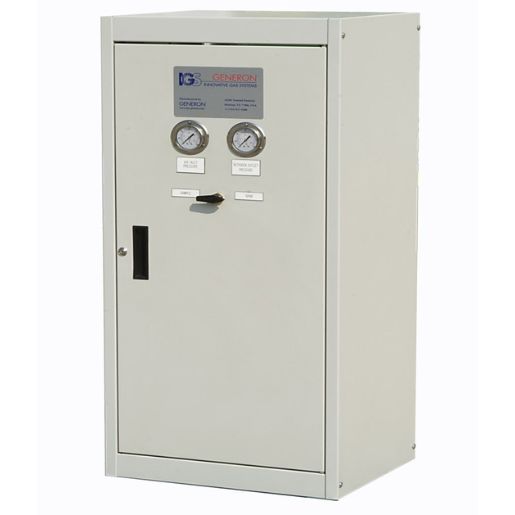

4000 Series Cabinet
- N₂ Capacity: 15 – 5,400 SCFH @ 100 – 175 psig
- Foot Print: 32” L x 20” W x 56” H

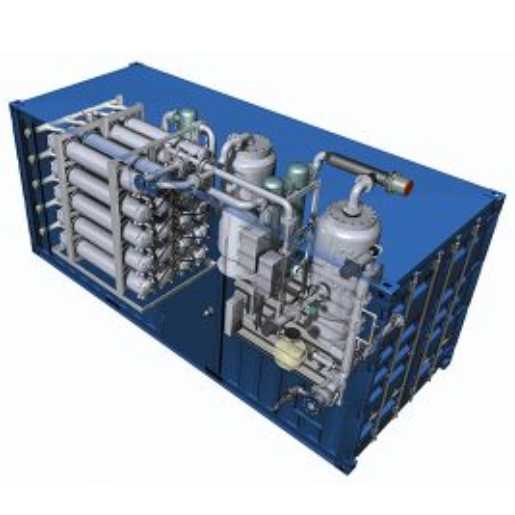

CONTAINERIZED SYSTEM
with internal pre-treatment
- N₂ Capacity: 24,000 – 240,000 SCFH @ 200-500 psig
- Foot Print: 120”-480” L x 96” W x 102” H

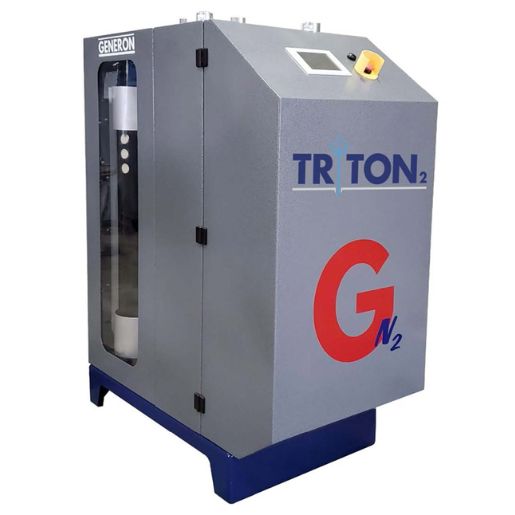

6150 CP SERIES CABINET
with internal pre-treatment
- N₂ Capacity: 400-20,000 SCFH @ 100 – 175 psig
- Foot Print: 39” – 54” L x 25” W x 56” H

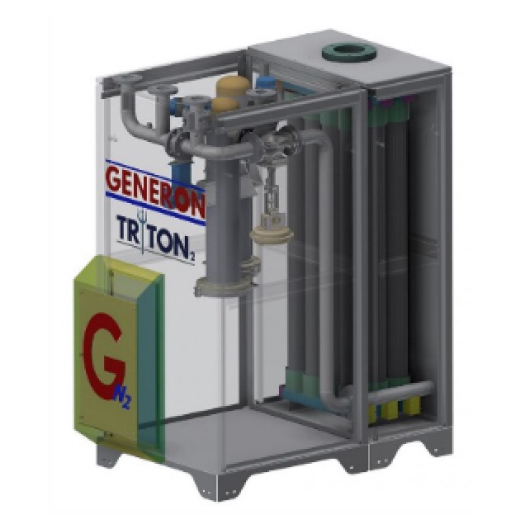

6800 CP SERIES CABINET
with internal pre-treatment
- N₂ Capacity: 4,000 – 60,000 SCFH @ 100 – 175 psig
- Foot Print: 84” L x 48” W x 101” H

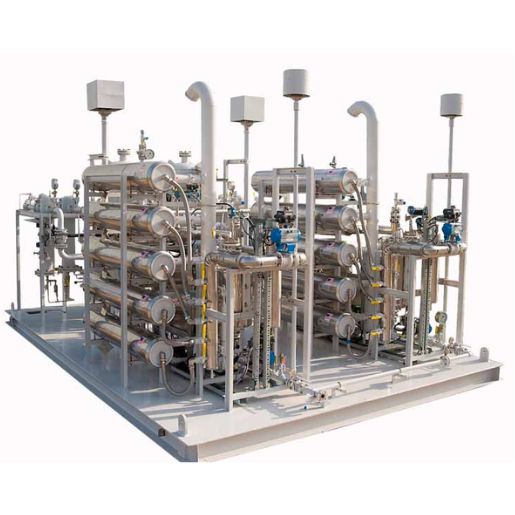

CUSTOM SKIDDED SYSTEM
- N₂ Capacity: 1,500 – 110,000 SCFH @ 100 – 450 psig
- Foot Print: 120” – 480” L x 96” W x 102” H

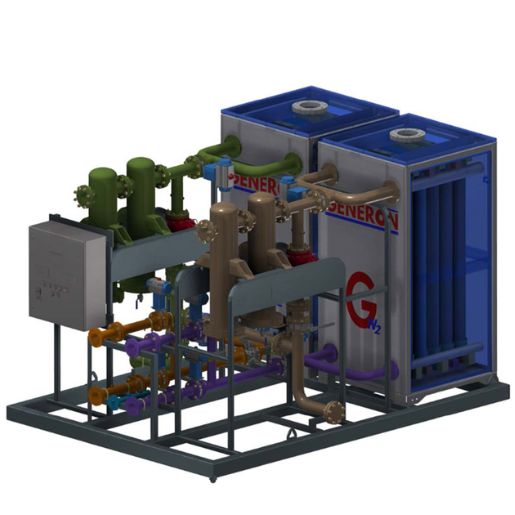

6800CP MODULAR SYSTEM
with external pre-treatment
- N₂ Capacity: 30,000 – 240,000 SCFH @ 100 – 175 psig
- Foot Print: 156” L x 55” – 110” W x 104” H
PSA Nitrogen Generators

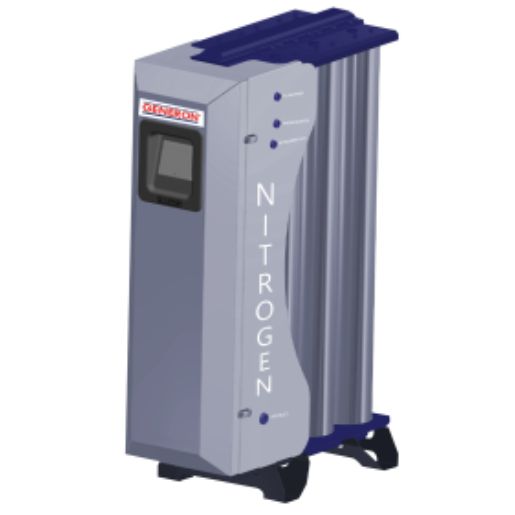

MODULAR BANK PSA
- N₂ Capacity: 124 – 7428 SCFH @ 90 – 150psig
- Foot Print: 65” L x 24” W x 72” H

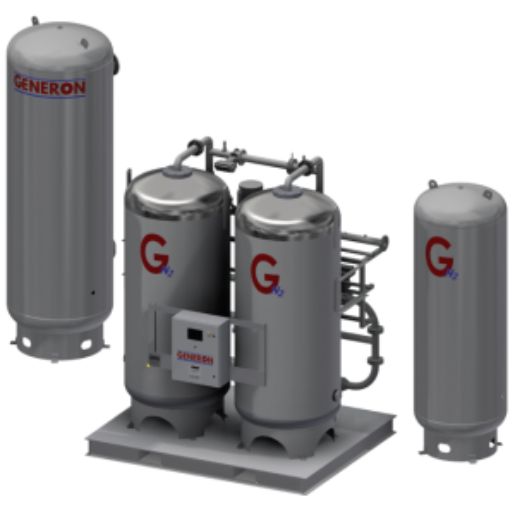

TWIN TOWER PSA
- N₂ Capacity: 800 – 112,000 SCFH @ 100 – 145 psig
- Foot Print: 58” – 156” L x 52” – 120” W x 58” – 156” H

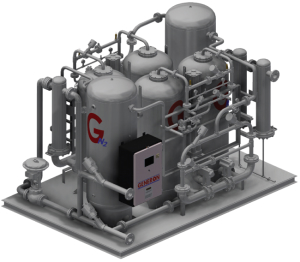

SEQUENTIAL PSA
- N₂ Capacity: up to 254,000 SCFH @ 100 – 145 psig
- Foot Print: 116”-240”” L x 96” W x 108” H

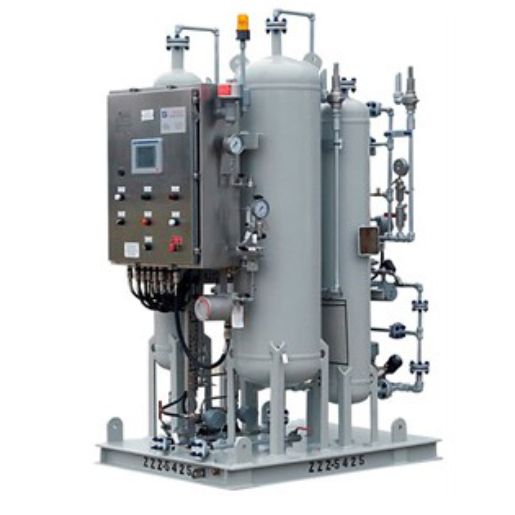

CUSTOM AND HIGH-SPEC NITROGEN GENERATORS
Engineered and designed to meet the stringent demands of the Offshore, Onshore, Oil & Gas, and Petrochemical Markets.

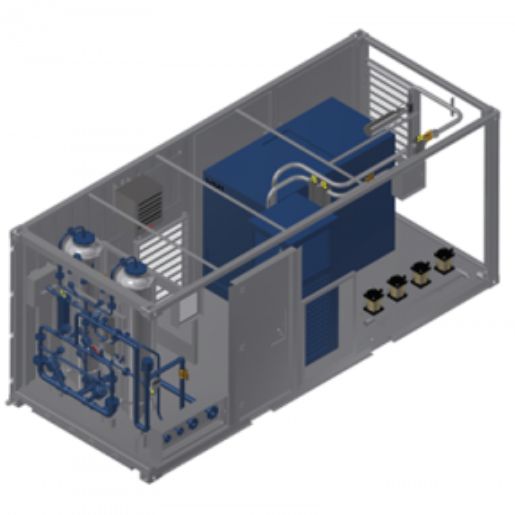

CONTAINERIZED SYSTEM
with feed compressions & pre-treatment
- N₂ Capacity: 600 – 25,000 SCFH @ 100 – 145 psig
- Foot Print: 240” – 480” L x 96” W x 114” H
MARINE SEQUENTIAL PSA
- N₂ Capacity: up to 254,000 SCFH @ 100 – 145 psig
- Foot Print: 116”-240”” L x 96” W x 108” H
